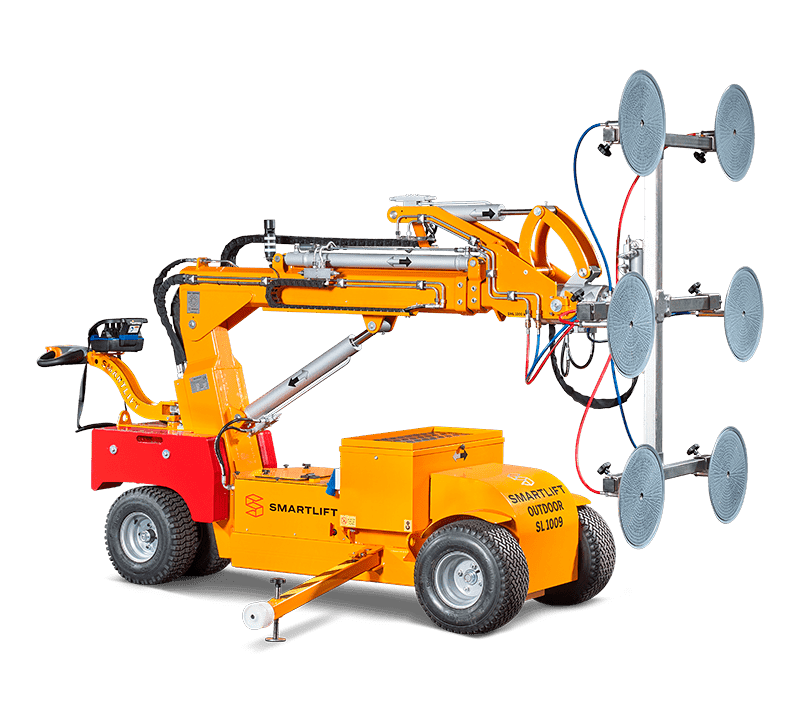

SL 1009

The SL 1009 Outdoor is the largest glass lifter in the Smartlift range. It is equipped with a proportional hydraulic system that enables the operator to have precise control over the arm and yoke. The controls allow for small adjustments, resulting in corresponding small movements of the yoke and arm. This feature instills confidence when handling large glass elements. The wireless remote unit provides freedom of movement during installation, allowing for a better view of the surroundings. Additionally, a built-in display provides an overview of the battery status, vacuum level, and actual load strain. This is particularly useful when working with heavy elements where safety is of utmost importance.

Up to1000 kg
Lifting height465 cm
Arm Extension166 cm
Build Your Own

Get a price for your own Smartlift

SL 1009SL 1009
Extra Equipment
Receive Quote
Country
Industry...

Technical Specifications

SL 1009
Rotation TypeHydraulic
Lifting cap1000 kg
Rotation+ / - 90 °
Lifting cap (extended boom)280 kg
Lifting height465 cm
Curb weight1480 kg
Sideshift10 cm
Width102 cm
Transport length283 cm
Transport height157 cm
Driving speed6.0 km/h
Charging time (hours)10
Operating time (hours)8
Drive wheelsFront wheels
1. extension of arm83 cm
2. extension of arm83 cm
