SL 1009

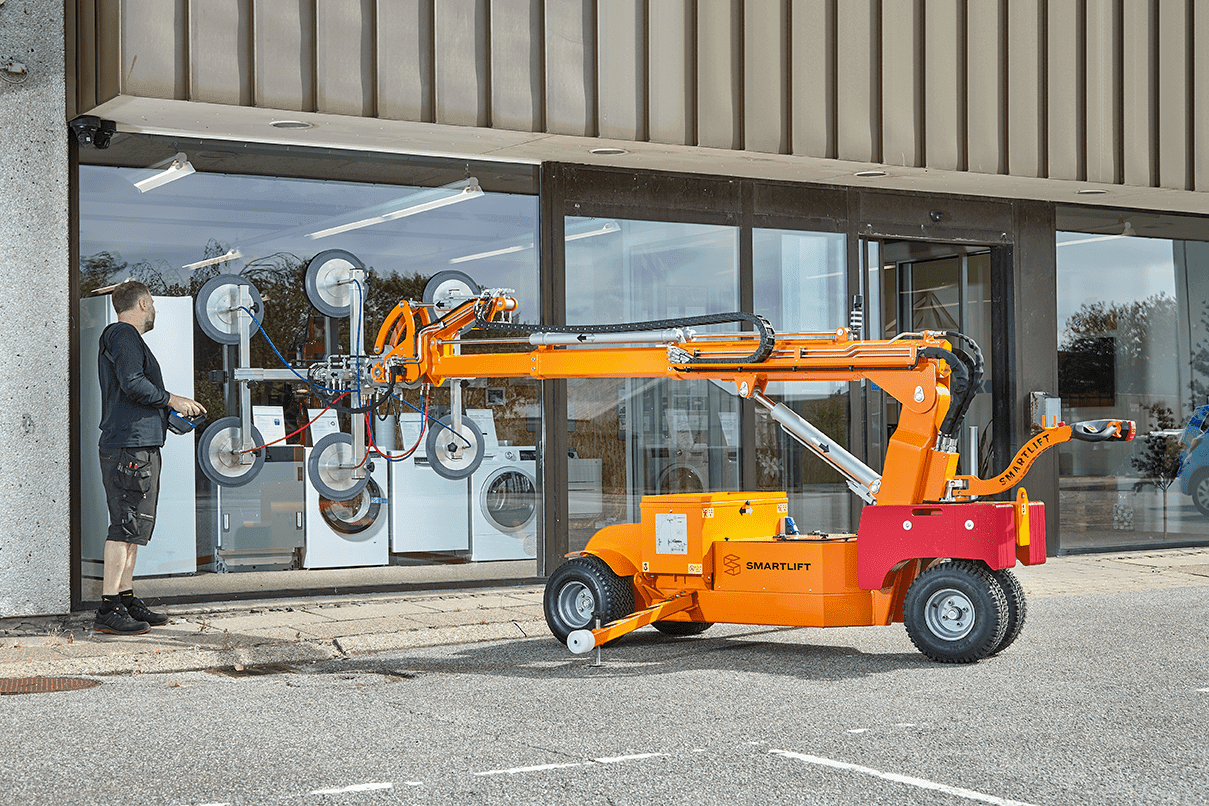

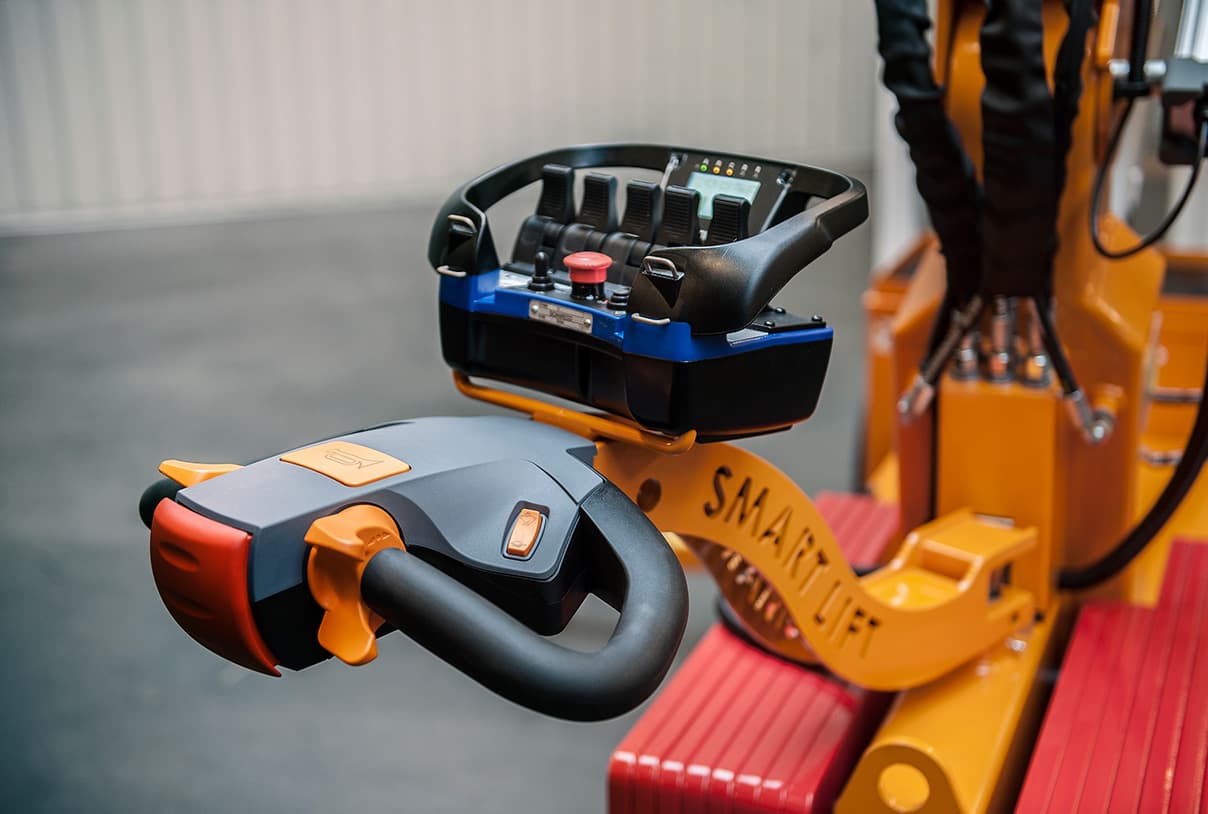

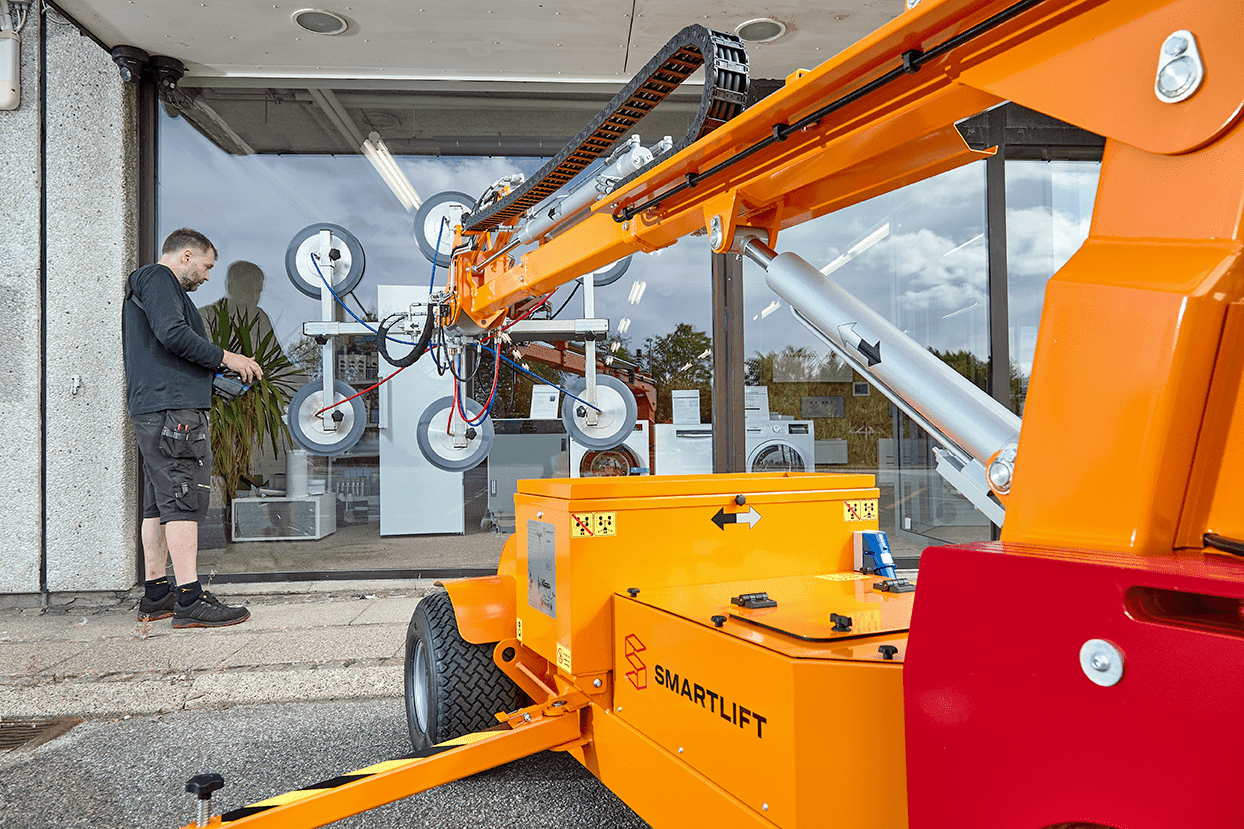

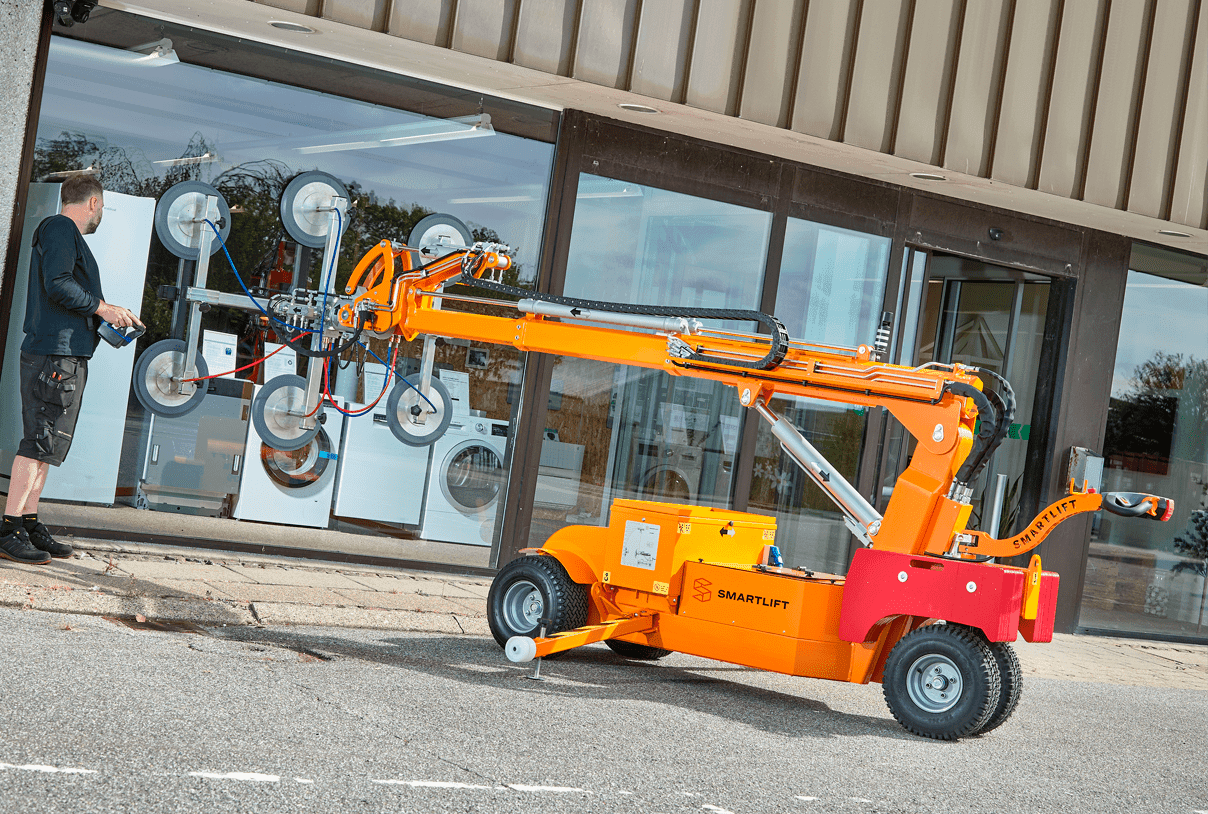

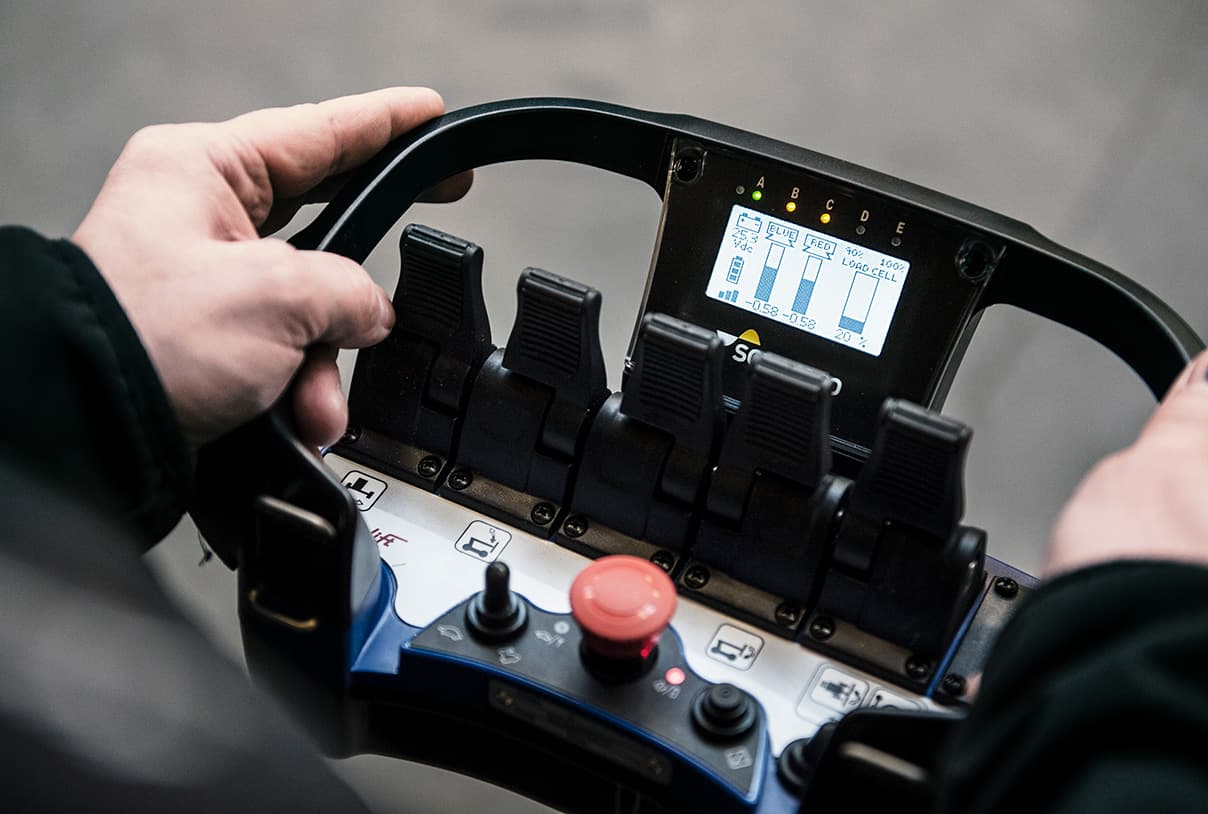

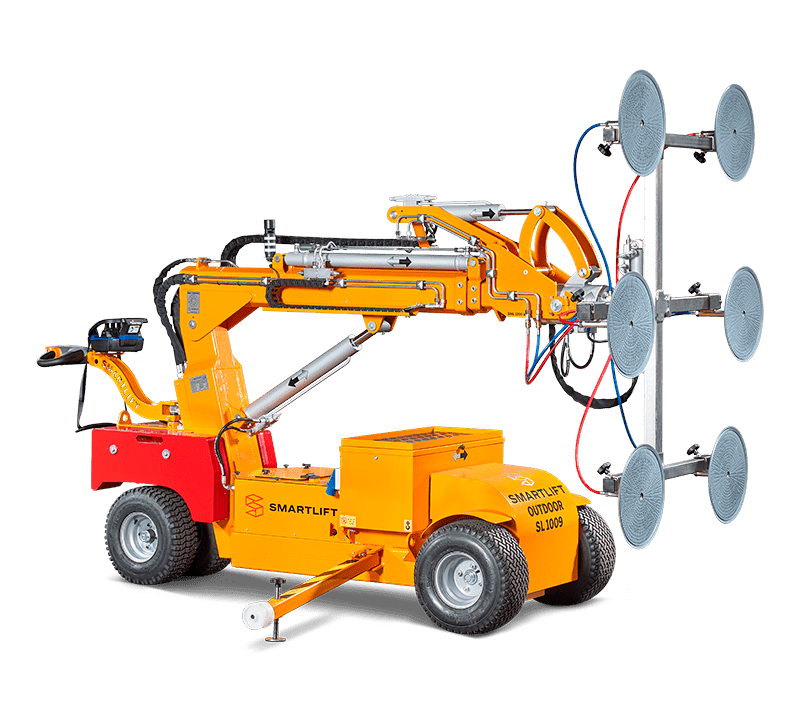

The SL 1009 Outdoor is the largest glass lifter in the Smartlift range. It is equipped with a proportional hydraulic system that enables the operator to have precise control over the arm and yoke. The controls allow for small adjustments, resulting in corresponding small movements of the yoke and arm. This feature instills confidence when handling large glass elements. The wireless remote unit provides freedom of movement during installation, allowing for a better view of the surroundings. Additionally, a built-in display provides an overview of the battery status, vacuum level, and actual load strain. This is particularly useful when working with heavy elements where safety is of utmost importance.

Up to

2200 lbs

Lifting height

15.26 ft

Arm Extension

8.4 ft

Financing from $1,348,-

Standard financing with 0% down term payment. Term 60 month and no residual value.
Calculate payback time

Get a price for your own Smartlift

SL 1009

SL 1009 photo

Extra Equipment

Receive Quote

Select...
Industry...

Technical Specifications

SL 1009

Rotation TypeHydraulic
Lifting cap2200 lbs
Rotation+ / - 90 °
Lifting cap (extended boom)620 lbs
Lifting height15.26 ft
Curb weight3260 lbs
Sideshift4 in
Width3.35 ft
Transport length9.28 ft
Transport height5.15 ft
Driving speed3.7 mph
Charging time (hours)10
Operating time (hours)8
Drive wheelsFront wheels
1. extension of arm4.2 ft
2. extension of arm4.2 ft
