SL 809
Outdoor
SL 809

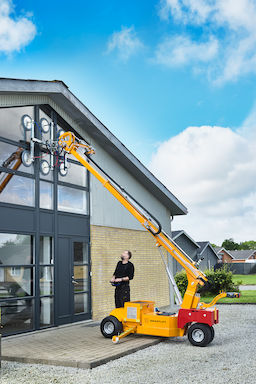

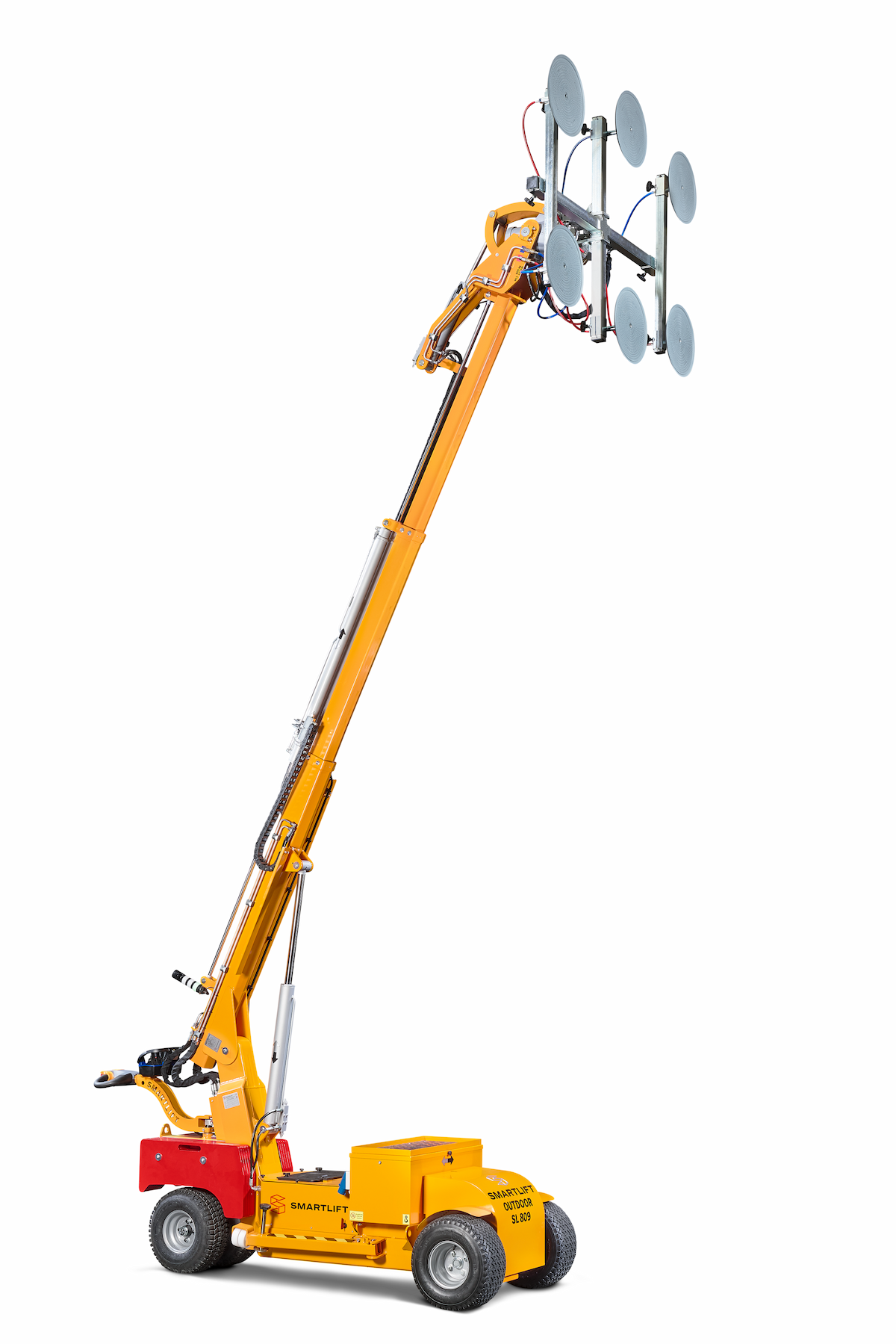

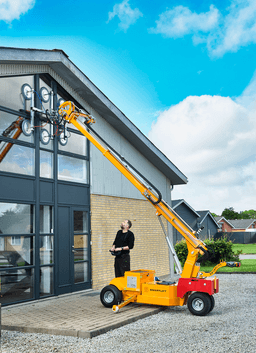

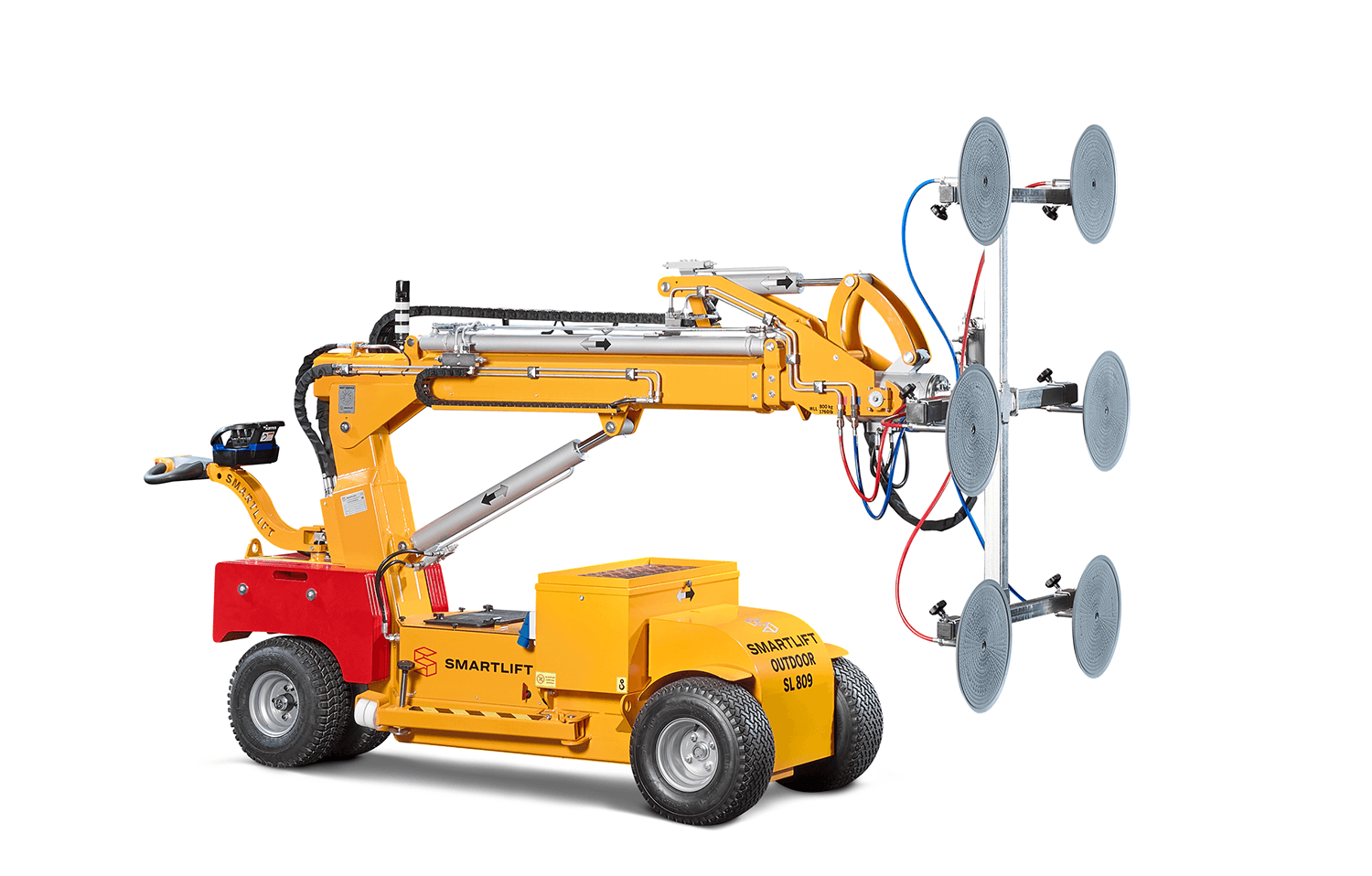

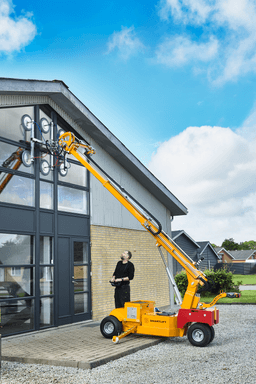

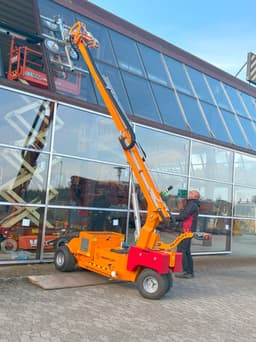

The Smartlift SL 809 stands out as the highest-reaching vacuum lifter in our lineup, capable of lifting up to first-floor heights and beyond. The SL 809 is the ideal solution for projects requiring precision and power at elevated levels. Whether it’s glass, stone, or metal, the SL 809 ensures safe and efficient handling with its advanced hydraulic system and remote-controlled, rotating yoke. Elevate your lifting capabilities to new heights with the SL 809.
Up to
800 kg
Lifting height
600 cm
Arm Extension
256 cm
Build Your Own
Reply within 24 working hours·Private·No commitment
Technical Specifications
SL 809| Rotation Type | Hydraulic |
| Lifting cap | 800 kg |
| Rotation | + / - 90 ° |
| Lifting cap (extended boom) | 90 kg |
| Lifting height | 6000 mm |
| Curb weight | 1510 kg |
| Sideshift | 100 mm |
| Width | 1020 mm |
| Transport length | 3080 mm |
| Transport height | 1640 mm |
| Driving speed | 6.0 km/h |
| Charging time (hours) | 8 |
| Operating time (hours) | 10 |
| Drive wheels | Front wheel |
| 1. extension of arm | 1280 mm |
| 2. extension of arm | 1280 mm |
