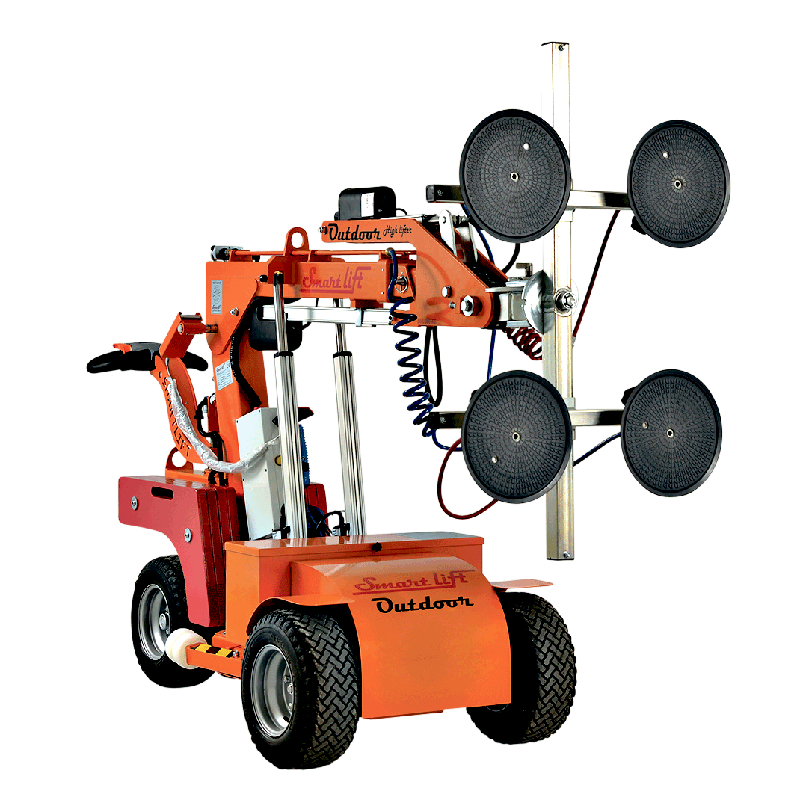

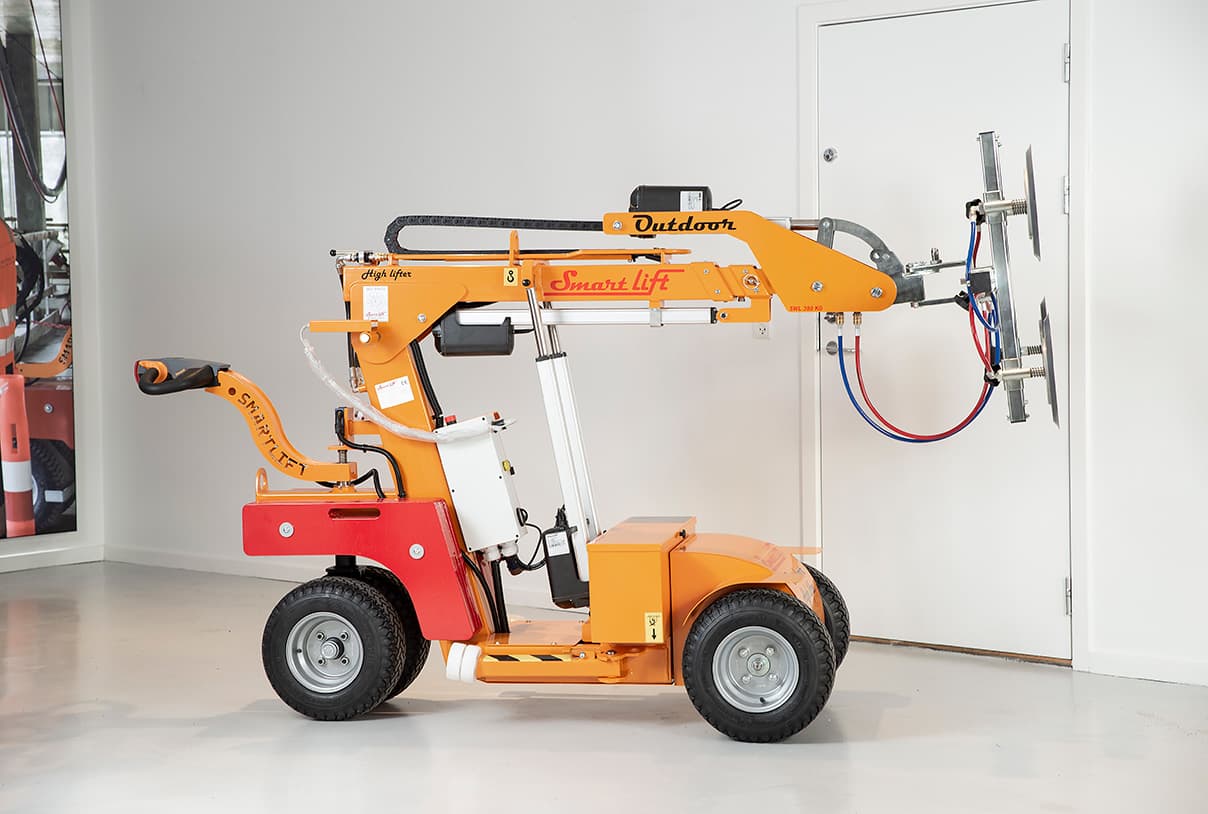

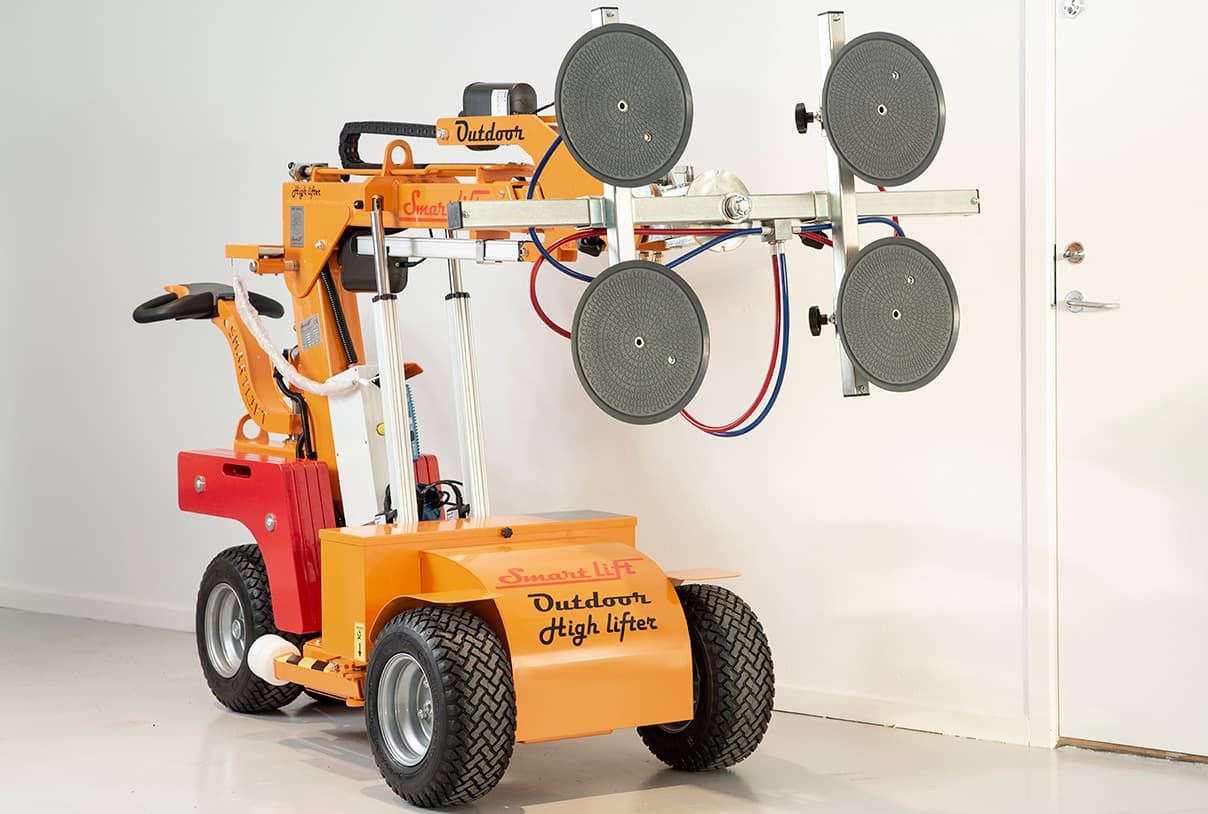

SL408 HLE

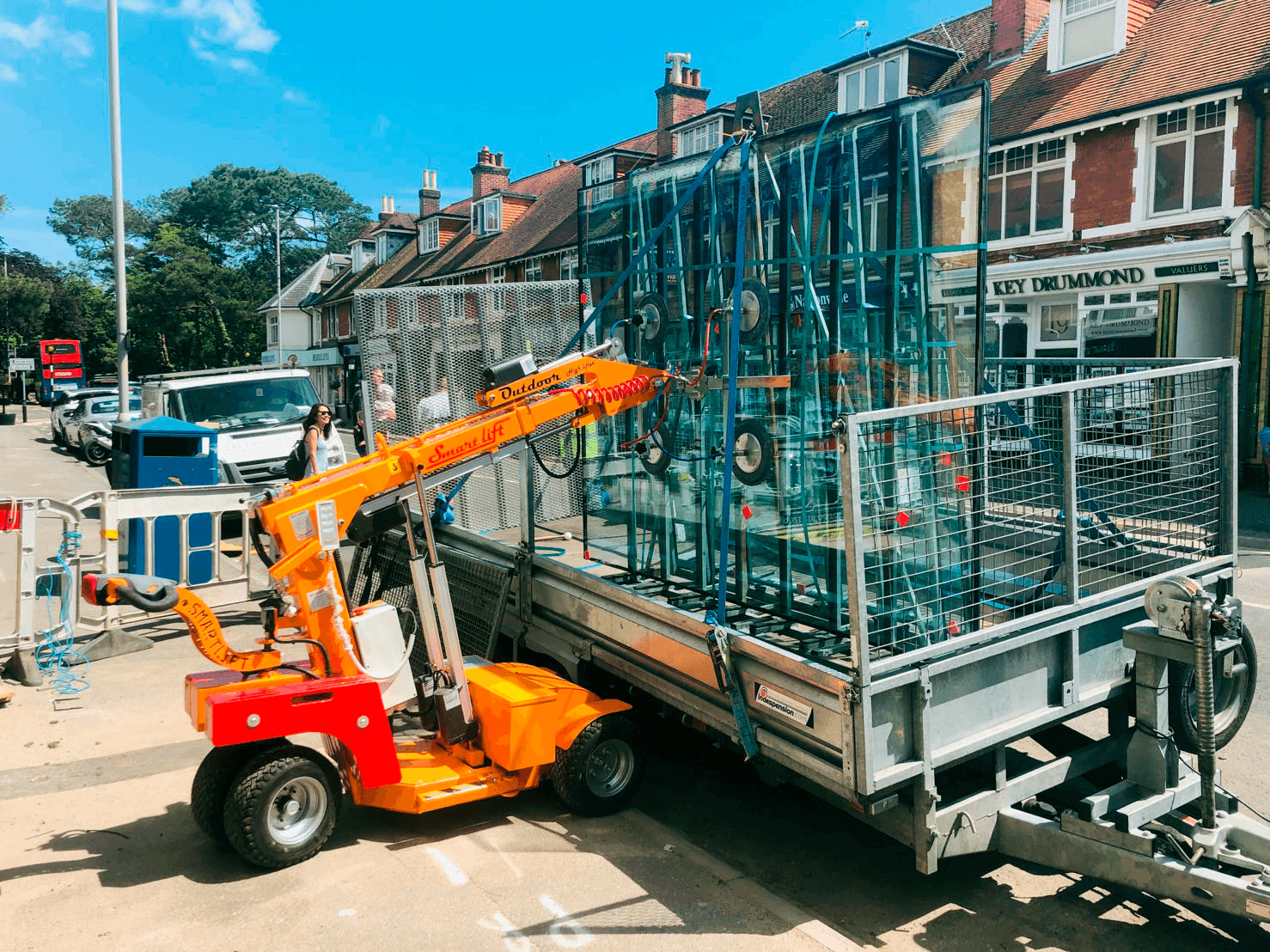

This versatile machine is well-suited for a wide range of installation projects. For extended reach, consider the High Lifter version. Alternatively, opt for the Rotating Yoke option, which offers a 325° rotation (RT) for enhanced flexibility during installation. With the electric rotating yoke, you can effortlessly rotate the load in three dimensions, ensuring exceptional precision. What sets the SL 408 Outdoor apart is its remarkable versatility. It excels in outdoor glazing tasks and seamlessly transitions to indoor work when needed, thanks to its compact size.
Up to
950 lbs
Lifting height
144 in
Arm Extension
48 in
Configure your Smartlift
Select extension of the 2nd arm:

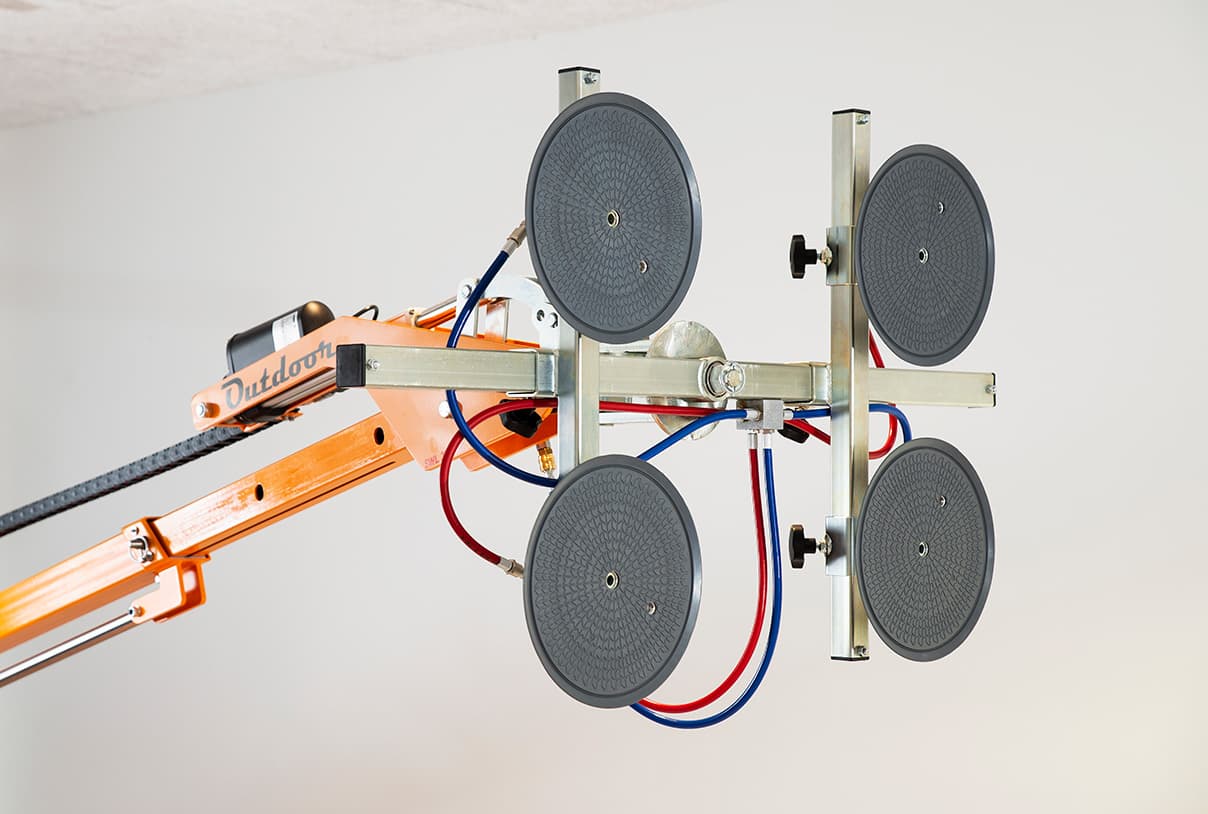

Electrical rotating yoke:
Financing from $661,-
Standard financing with 0% down term payment. Term 60 month and no residual value.Calculate payback time
Get a price for your own Smartlift
Technical Specifications
SL408 HLE
| Lifting cap | 950 lbs |
| Lifting cap (extended boom) | 220 lbs |
| Lifting height | 144 in |
| Curb weight | 1600 lbs |
| Sideshift | 4 in |
| Rotation (manually) | 360 ° |
| Width | 32 in |
| Transport length | 86 in |
| Transport height | 56 in |
| Driving speed | 3.7 mph |
| Charging time (hours) | 8 |
| Operating time (hours) | 10 |
| Drive wheels | Front |
| 1. extension of arm | 24 in |
| 2. extension of arm | 24 in |
